MCTC-HCB-T647 Elevator Display
A MONARCH seven-inch elevator display assembly identified by the MCTC-HCB-T647 label, with communication and power connections visible on the rear panel.
Product Model and Features
Commercial modelMCTC-HCB-T647
Product identityMCTC-HCB-T647 Elevator Display

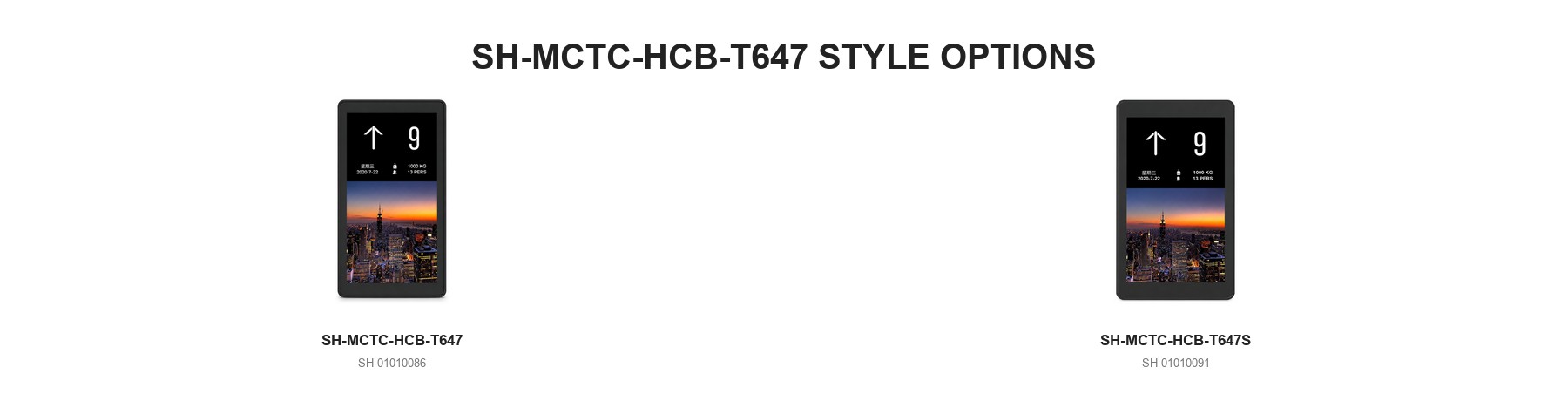

Product View
Product Information and Specifications
| Item | Information |
|---|---|
| Product type | Elevator display assembly |
| Brand | MONARCH |
| Exact model | MCTC-HCB-T647 |
| Display size | 7 inches |
| Installation options | Horizontal or vertical orientation |
| Rear interfaces visible on label | USB, speaker, terminal, CAN, RS485 and RS232 connection groups |
Before You Buy
- Match the full MCTC-HCB-T647 label and seven-inch format.
- Select the required horizontal or vertical presentation for the installation.
- Compare the rear connector groups and communication arrangement with the installed display before replacement.
Frequently Asked Questions
What display format is identified for MCTC-HCB-T647?
It is a MONARCH seven-inch elevator display assembly that can be installed in horizontal or vertical orientation.
Which connections are identified on the rear label?
The rear label groups USB, speaker, terminal, CAN, RS485 and RS232 connections; the exact wiring should follow the matching system documentation.
What should be compared before replacing an existing display?
Compare the complete model label, display orientation, rear connector arrangement and the communication setup used by the installed system.
