Ultrathin Dot Matrix Display Board

MT70-HCB-I

Price

$17.28

/pc

$17.82

Reference price excluding installation & freight,please consult sales for exact quote

Select Model

SH-MT70-HCB-I

SH-MT70-HCB-F

SH-MT70-HCB-U1

SH-MT70-HCB-V1

SH-MT70-HCB-T5A

SH-MT70-HCB-U6

Product Introduction

MT70-HCB Elevator Display Boards

Display-board options for compatible elevator landing stations and car operating panels.

Product specifications

Model	Display type	Functions
MT70-HCB-I	Ultra-thin dot-matrix LED display	Address set through jumper wiring
MT70-HCB-F	Dot-matrix / segment display control board	Floor address set using the SW switch
MT70-HCB-U1	4.3-inch LCD segment display	Integrated alarm function; SW1 address setting
MT70-HCB-V1	6.4-inch LCD segment display	White-on-black display; automatic low-power standby after 30 seconds
MT70-HCB-T5A	7-inch TFT colour LCD	800 × 480 resolution; colour graphics and images
MT70-HCB-U6	4.3-inch LCD segment display	White-on-blue display; low-power standby after 60 seconds

Functions and applications

Displays elevator floor and travel-direction information.
Dot-matrix, segment LCD and colour TFT options suit different panel designs.
Address-setting methods depend on the selected model.

Product views

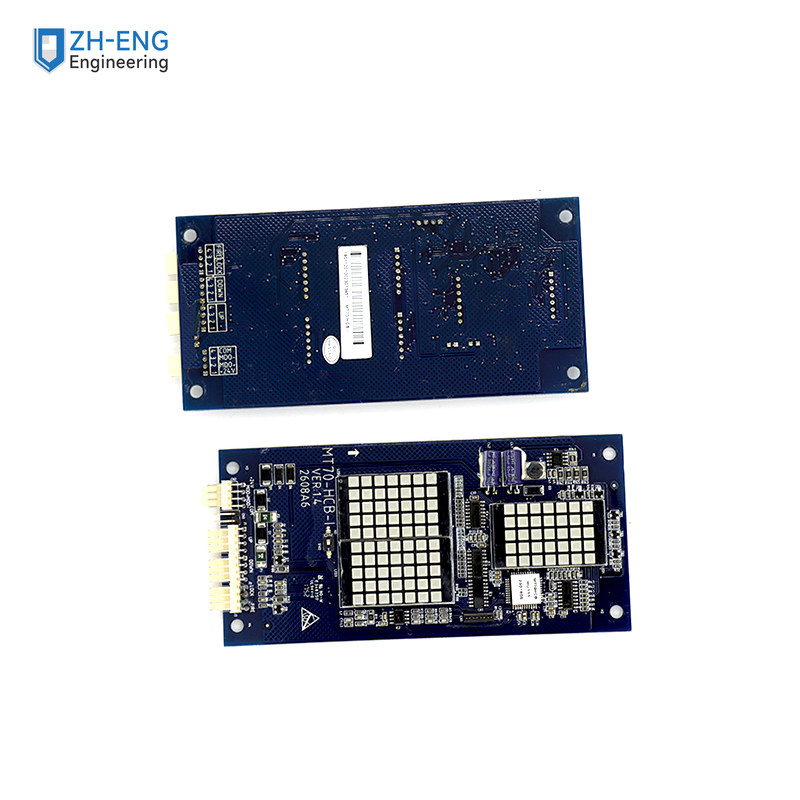

MT70-HCB-I dot-matrix display board, reverse side.

Installation and selection

Select the exact display model, controller protocol, connector arrangement and panel opening.
The pictured configurations are model options; the selected model determines the display type.

Additional source-provided technical information

Display size: 4.3-inch LCD.

Frequently Asked Questions

What is MT70-HCB-I?

MT70-HCB-I is an ultra-thin vertical dot-matrix display control board in the MT70 hall/car-call display family.

What supply and communication does it use?

The MT70 manual specifies 24 VDC power and Modbus communication for MT70-HCB-I, with a 70 × 144 mm board and 10 mm ultra-thin design.

Which functional limits should be checked?

The manual notes that MT70-HCB-I has no up/down station chime output and no RJ45 keypad interface. Confirm the exact HCB suffix, connector layout and required landing functions before replacement.
