Product Overview
Three reviewed product photographs show the same SH-ADS-C housing from front, rear and angled installation views. Search summaries, seller attribute tables and promotional claims are retained only as research evidence and are not displayed as product images.

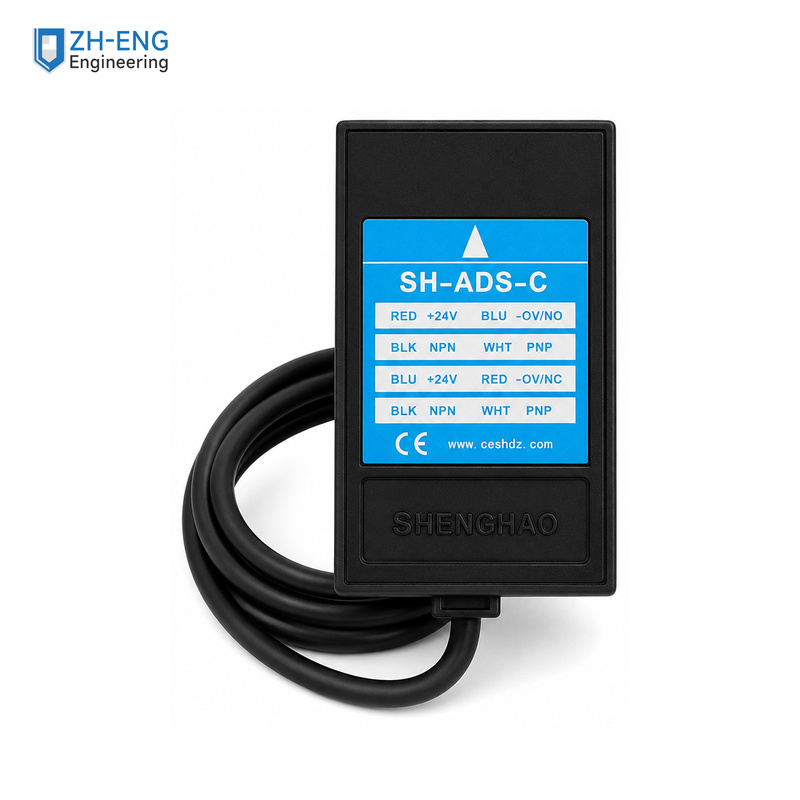

COMPLETE SENSOR AND CABLE ASSEMBLY
REAR HOUSING AND IDENTIFICATION LABEL
SLOTTED HOUSING AND CABLE TERMINATION
Specification Confirmation
| Item | Reviewed reference | Order check |
|---|
| Model | SH-ADS-C | Confirm the complete physical label and supplied revision |
| Product type | Elevator leveling / position sensor | Confirm the controller and intended installation position |
| Physical configuration | Rectangular slotted housing with integrated cable and exposed conductors | Compare housing, slot, mounting points and cable termination |
| Visible label references | +24 V, 0 V/NO, 0 V/NC and NPN/PNP markings are visible | Do not wire from the photograph; verify the supplied label and wiring document |
| Output logic | Not independently verified for the supplied revision | Confirm NO/NC behavior and NPN/PNP interface with the controller |
| Dimensions and cable length | Not verified from an exact-model technical document | Measure the existing and supplied units |
| Application compatibility | Not confirmed from appearance alone | Provide the controller model, old sensor label and installed photos |
Seller attribute screenshots contain generic warranty, certification and production claims that are not used here. The physical unit and exact technical documentation should govern final selection and wiring.
Buyer Confirmation Checklist
Identification
Provide a clear photograph of the full front label, rear identification sticker and any revision or batch marking.
Electrical interface
Confirm supply voltage, NO/NC logic, NPN/PNP output, conductor functions and controller terminal requirements.
Mechanical installation
Check housing size, slot width and depth, mounting points, sensing position, cable route and required cable length.
Frequently Asked Questions
Can SH-ADS-C be selected from appearance alone?
No. Confirm the complete label, output behavior, wiring, dimensions, cable and controller interface before replacement.
Can the wiring be taken directly from the online photograph?
No. The photographed markings are a reference only. Verify the supplied unit's label and wiring document before connection.
What information is needed for compatibility review?
Send the old sensor label, installed position, controller model and terminals, wiring details, housing and slot dimensions, and cable length.
Selection note: Final compatibility depends on the exact revision, controller interface, wiring and mechanical installation. Do not substitute generic seller claims for the supplied unit's documentation.
