Traction Machine

450KG 1.0M/S 2:1 2.54KW

Preis

$1504.51

/Einheit

$1551.05

Referenzpreis ohne Montage und Fracht, genauen Preis bitte beim Vertrieb erfragen

Modell auswählen

SH-MDQ20HXS-1

SH-MDQ20HXS-5

Produktbeschreibung

MDQ20HXS Compact Gearless Traction Machine

Name: Traction Machine
SKU: SH-04020508
Price: 1504.51 USD
Availability: InStock

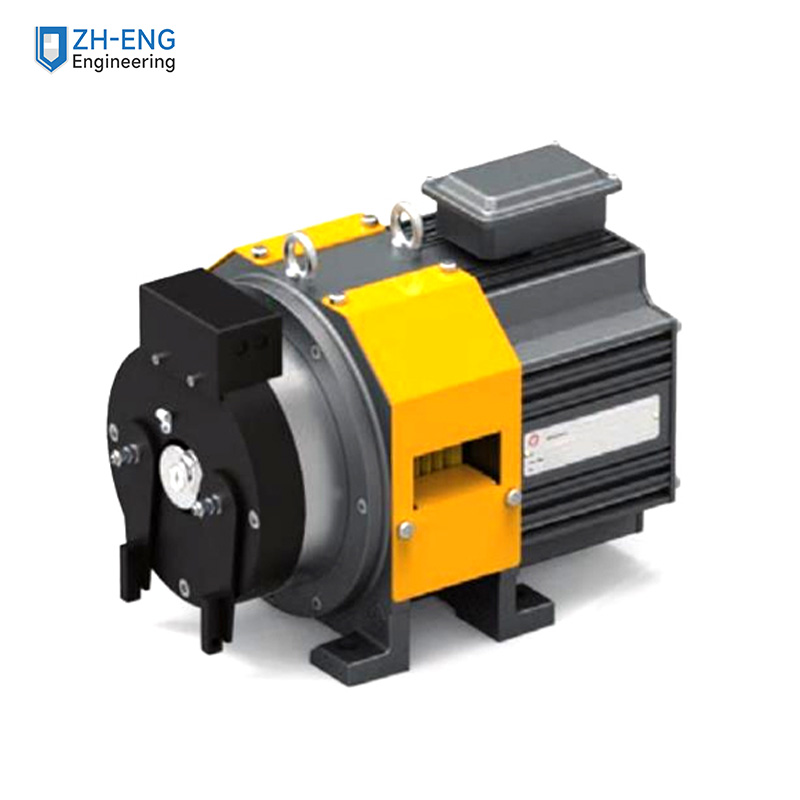

A compact gearless elevator traction machine with an enclosed motor body, integrated brake arrangement and guarded sheave area. The main 450 kg selection operates at 1.0 m/s with 2:1 roping and 2.54 kW motor power. Compare the ordered electrical and sheave configuration with the installation.

Product Views

Outline Dimensions

Dimensions in mm. Front-view labels: 350.5, 159, 315 and fixing spans 63–166–63. Side-view labels: 252 and 204, total 456. Top-view labels: 90, 228, 86 and 86; fixing hole diameter 18. Check all fixing and clearance dimensions against the ordered assembly.

Product Information

Item	Specification
Model	MDQ20HXS
Main load selection	450 kg
Main elevator speed	1.0 m/s
Roping	2:1
Main motor power	2.54 kW
Reference drive torque	Approximately 150 N m at S5–25% ED
Sheave options	Diameter 200 mm / 240 mm
Sheave tread width F	80 mm
Rope diameter	8 mm
Rope count range	3–6
Rope pitch	12 mm
Duty rating	S5–25% ED
Machine net weight	120 kg
Encoder	ERN1387
Brake torque	2 × 200 N m
Brake supply	DC 110 V / 1.9 A
Brake power	209 W
Insulation class	F
Protection code	IP41

Related Model Comparison

Model	Specification
SH-MDQ20HXS-1	450KG 1.0M/S 2:1 2.54KW
SH-MDQ20HXS-5	450KG 0.5M/S 2:1 1.5KW
SH-MDX26HXS-15	450KG 0.5M/S 2:1 1.5KW

1.0 / 0.5 m/s Configuration Comparison

Load (kg)	Elevator speed (m/s)	Roping	Motor power (kW)	Reference drive torque (N m)	Sheave options (mm)	Reference motor speed with 200 mm sheave (rpm)
450	1.0	2:1	2.54	Approximately 150	200 / 240	Approximately 191
450	0.5	2:1	1.5	Approximately 150	200 / 240	Approximately 96

Series Selection Range

Item	Range
Load range	260–450 kg
Elevator speed range	0.3–1.0 m/s
Sheave diameters	200 / 240 mm

Before Ordering

Confirm load, elevator speed, roping and the complete motor/drive configuration together.
Match sheave diameter, groove count, rope diameter and pitch to the installation. The 200 mm reference motor speeds must not be applied unchanged to another sheave diameter.
Check brake supply, encoder, mounting dimensions and available clearances; installation and commissioning require qualified elevator personnel.

Frequently Asked Questions

What is the main operating configuration?

The main selection is 450 kg at 1.0 m/s with 2:1 roping and 2.54 kW motor power.

Is there a lower-speed configuration?

The comparison includes a 450 kg, 0.5 m/s, 2:1 configuration with 1.5 kW motor power. Match the complete motor and drive package.

What sheave and rope arrangement should be checked?

Compare the 200 or 240 mm sheave option, 8 mm rope diameter, 3–6 rope count range and 12 mm pitch with the installation.

What should be checked before ordering?

Confirm the exact operating configuration, motor supply, brake, encoder, sheave, rope arrangement, fixing dimensions and clearances.
