LSG02 Elevator Safety Gear
Product and dimensional references for the selected configuration, with the corresponding original drawings retained for inspection.
Product Reference
LSG02
Selected Specifications

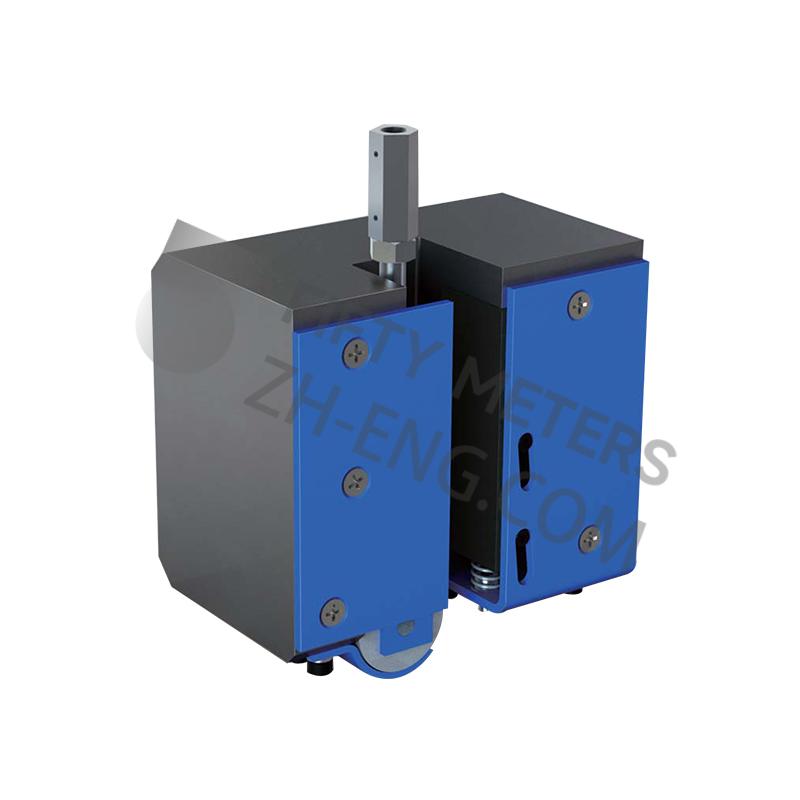

| Parameter | Confirmed value |
|---|---|
| Permitted total mass P+Q | ≤1500 kg |
| Rated speed | ≤0.63 m/s |
| Rail width | 9 / 10 / 15.88 / 16 mm |
| Illustrated connection | A02 bent upper lifting ear |
P+Q is permitted total mass, not passenger rated load. The manufacturer drawing includes A01, A02 and A03 interfaces; the product rendering corresponds to A02. A01/A03 are manufacturer alternatives, not confirmed supplied configurations.
Technical Drawings

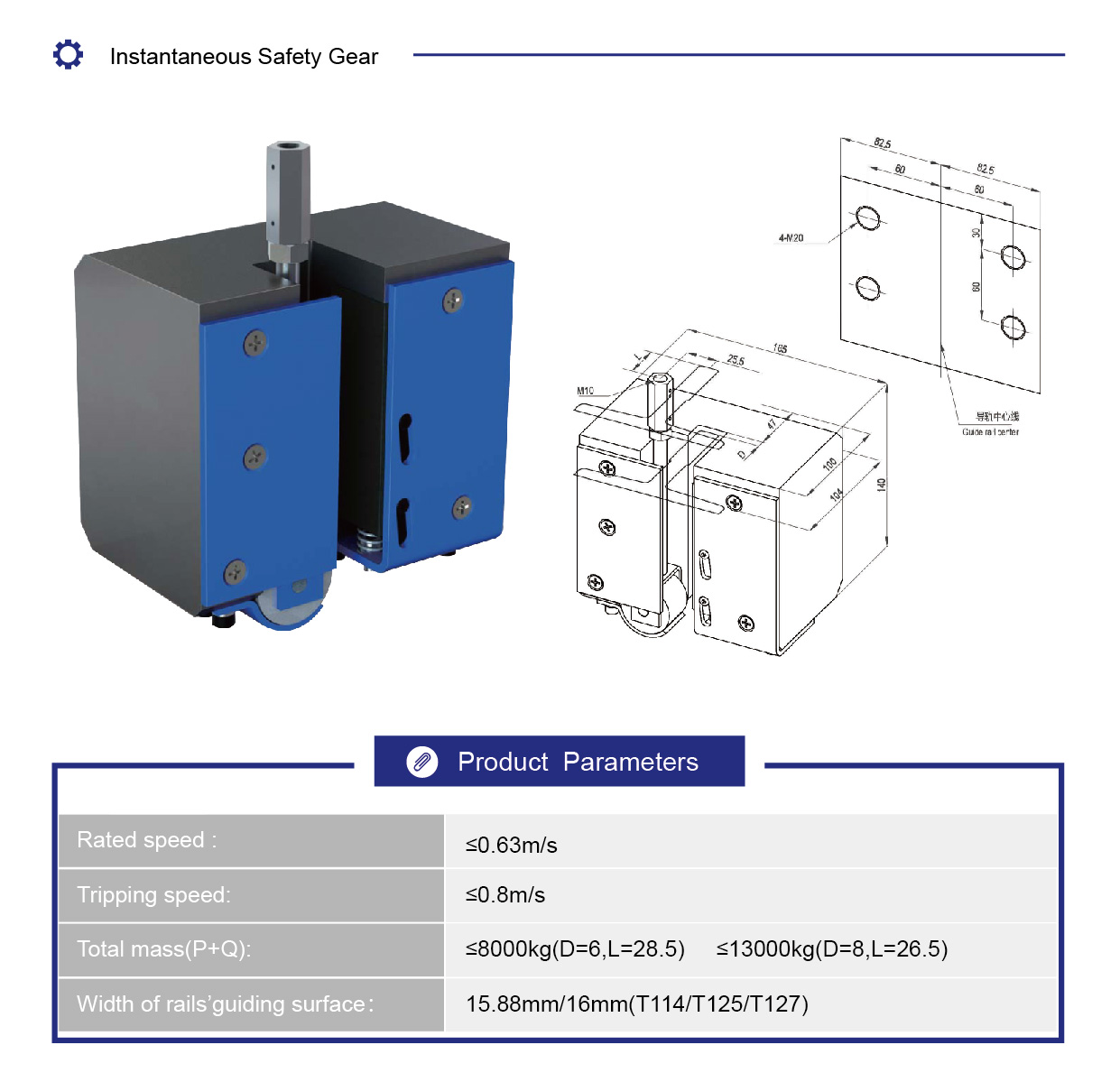

All associated views and dimension lines are retained. Select an image to open its unmodified original.
Selection Questions
Is 1500 kg the passenger rated load?
No. The manufacturer identifies P+Q as permitted total mass.
Which connection is illustrated?
The product rendering shows the A02 bent upper lifting ear. The complete manufacturer drawing also includes A01 and A03 reference alternatives.
Which rail widths are recorded?
9, 10, 15.88 and 16 mm. Confirm the selected interface and rail width for the actual installation.
