BL6-UO4005-N Elevator Integrated Controller
A Shenyang Bluelight BL6-U elevator integrated controller: 380 V class, 5.5 kW and plastic-shell configuration.
Product Model and Features
Commercial modelBL6-UO4005-N
Configuration380 V class · 5.5 kW · plastic shell

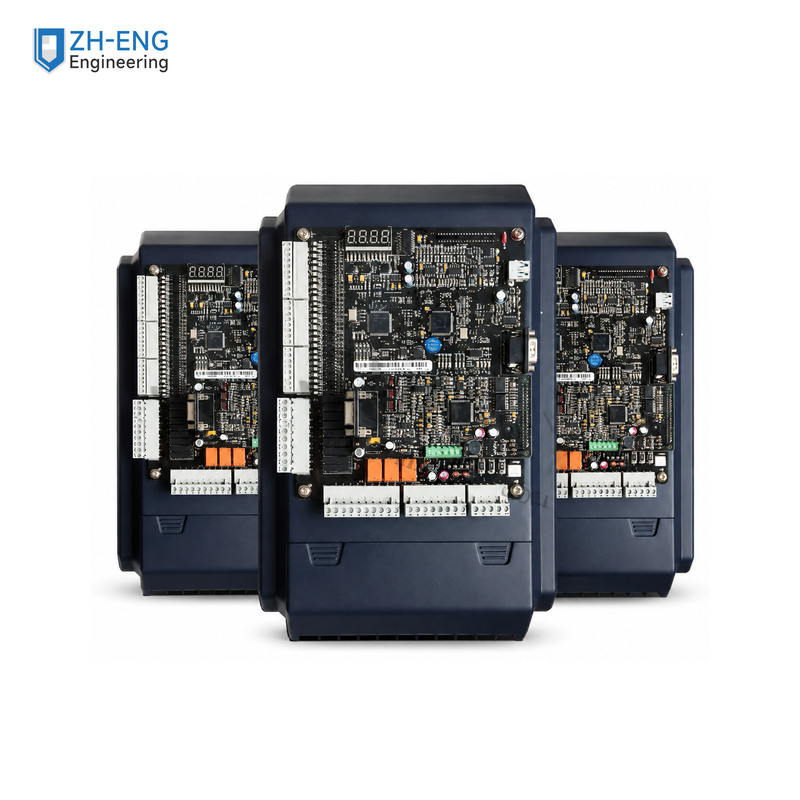

Product View
Product Information and Specifications
| Item | Information |
|---|---|
| Product type | Elevator integrated controller |
| Manufacturer | Shenyang Bluelight |
| Exact model | BL6-UO4005-N |
| Voltage class | 380 V |
| Protective structure | Open type (letter O) |
| Enclosure | Plastic shell (suffix N) |
| Maximum motor power | 5.5 kW |
| Rated output capacity | 9 kVA |
| Rated input | 3-phase AC 380 V; 17 A |
| Rated output | 14 A; maximum voltage corresponds to 3-phase AC 380 V input |
| Frequency | 50 Hz rated; 120 Hz maximum output |
| Allowable input fluctuation | Voltage ±15%; frequency ±5% |
| Exterior dimensions | 222 × 348 × 200 mm |
| Mounting dimensions | 190 × 333 mm |
| Mass | 8.5 kg |
Available Power Configurations
| Commercial model | Power | Page role |
|---|---|---|
| SH-BL6-UO4005-N | 5.5 kW | Main configuration |
| SH-BL6-UO4007-N | 7.5 kW | Linked configuration |
| SH-BL6-UO4011-N | 11 kW | Linked configuration |
| SH-BL6-UO4015-N | 15 kW | Linked configuration |
Before You Buy
- Match the complete BL6-UO4005-N model; the character after U is the letter O.
- Confirm the 380 V class, 5.5 kW rating and plastic-shell suffix N.
- Use the applicable wiring and installation documentation for terminal, braking and motor-feedback connections.
Frequently Asked Questions
What does BL6-UO4005-N identify?
It identifies an open-type BL6-U integrated controller in the 380 V class, rated for 5.5 kW, with the N plastic-shell enclosure.
Which electrical values are specified for the 5.5 kW configuration?
The V2.4 manual lists 9 kVA output capacity, 17 A rated input current, 14 A rated output current, 50 Hz rated frequency and 120 Hz maximum output frequency.
Which physical dimensions apply to BL6-UO4005-N?
The exact plastic-shell row lists 222 × 348 × 200 mm exterior dimensions, 190 × 333 mm mounting dimensions and an 8.5 kg mass.
