CLOSED-LOOP ELEVATOR AC DRIVE
ME320L(N) Closed-Loop Elevator Inverter
Reviewed 7.5, 11 and 15 kW family for geared induction and gearless permanent-magnet elevator applications. Confirm the complete ME320LN model, market suffix, motor, encoder and braking arrangement before replacement.
Reviewed Product View

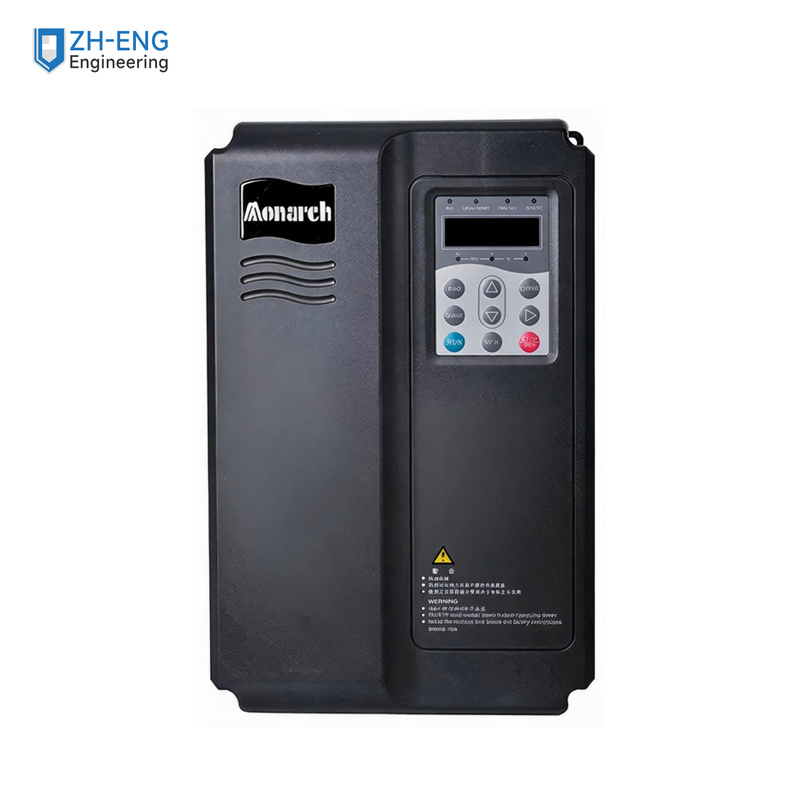

The supplied Monarch-branded front view has been cleaned and placed on the standard white-background layout without changing the housing, keypad, warning label or brand marking. A separate Inovance-branded angle was not mixed into the gallery because the physical branding differs.
ME320L(N) CLOSED-LOOP ELEVATOR DRIVE
Available Models
| Backend variant | Official model reference | Rated input / output current | Dimensions, W × H × D |
|---|
| 7.5 kW parent | ME320LN-4007-SA; submitted full reference adds -INT | 20.5 / 18 A | 208 × 322 × 192 mm |
| 11 kW child | ME320LN-4011-SA; confirm market suffix | 29 / 27 A | 208 × 322 × 192 mm |
| 15 kW child | ME320LN-4015-SA; confirm market suffix | 36 / 33 A | 208 × 322 × 192 mm |
The official ordering guide identifies “INT” as the international variant rating. Match the complete suffix on the physical unit; do not select only by power.
Official Series References
| Item | Official reference | Order check |
|---|
| Product type | Closed-loop elevator AC drive | Do not confuse with MD380L open-loop drive |
| Input range | 323–528 VAC series operating range | Verify site supply and nameplate |
| Motor support | Synchronous PM gearless and asynchronous induction geared motors | Confirm motor and encoder |
| Overload reference | 150% for 60 s; 180% for 3 s | Confirm exact manual and operating conditions |
| Ambient reference | Operation at 45 °C average ambient stated for the series | Check cabinet ventilation and derating |
| Communication | Onboard Modbus-RTU | Confirm address, baud rate and control integration |
Series Function Highlights
Elevator ride control
Official references list smooth ride performance, five independent S-ramps, direct approach and short-floor functions.
Motor and brake coordination
The series includes integrated dynamic braking, anti-rollback for PMSM gearless machines and pre-torque support for geared machines using a load-cell signal.
Commissioning and rescue
PC software, comprehensive trip diagnostics, optional keypad/memory and a 60 VDC rescue-ready function are listed for the series; confirm the supplied revision and accessories.
Buyer Confirmation Checklist
Exact identity
Provide photographs of the full model, market suffix, serial/revision label and installed option cards.
Motor and feedback
Confirm motor type, voltage/current/power, encoder type and supply, traction-machine data, brake and load-cell interface.
Installation and data
Check frame size, mounting, ventilation, braking resistor, terminals, I/O, Modbus, rescue supply and saved parameters.
Frequently Asked Questions
Are ME320LN and MD380L interchangeable?
No. ME320LN is a closed-loop elevator drive, while MD380L is an open-loop series. Match the complete model and control architecture.
Do 7.5, 11 and 15 kW use the same frame?
The reviewed official brochure lists the same 208 × 322 × 192 mm frame for these three models, but mounting and clearance must still be checked on the supplied unit.
What must be prepared before commissioning?
Prepare the exact manual, motor and encoder data, brake and rescue arrangements, I/O and communication records, option-card list and parameter backup.
Selection note: Final wiring, parameter loading and elevator safety validation must be performed by qualified personnel using the exact supplied-unit nameplate and manual.
