Traction Machine Series
SH-MONA400
SH-MONA400 traction machine series with 1 verified configuration.

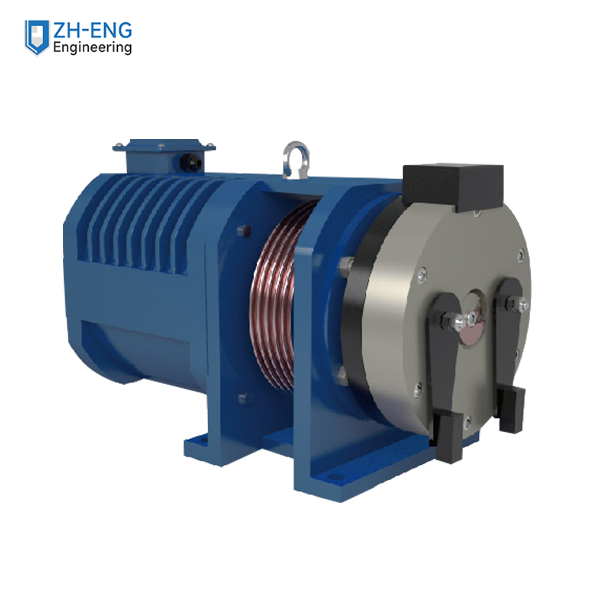

Product View
One clean product view is shown for this series. Configurations sharing the same appearance are listed in the specification table below.
Specifications
The main configuration and linked child configurations are consolidated in one table.
| Configuration | Rated load | Rated speed | Roping | Rated power | Source status |
|---|---|---|---|---|---|
| SH-MONA400 | 630 kg | — | 1:1 | 10.7 kW | 630KG 1:1 10.7kW 24A |
Technical Drawing and Dimensions
The dimensional drawing has been separated from the original reference sheet and rebuilt as a standalone technical image.
| Configuration | Rated load | Rated speed | Dimensional applicability |
|---|---|---|---|
| SH-MONA400 | 630 kg | — | Series dimensional drawing shown above |
All listed configurations are included. Where the source provides one shared series drawing, that drawing applies to each configuration listed above. No unverified numeric dimensions have been added.
Technical Range
Rated load range630 kg
Rated speed rangeSee specification table
Roping1:1
Rated power range10.7 kW
Final selection and installation dimensions must follow the confirmed configuration drawing.
