RMS12-PH-01 Elevator Magnetic Switch

Name: Magnetic Switch
SKU: SH-01030054
Price: 0.29 USD
Availability: InStock

A cylindrical magnetic switch for elevator position-sensing applications.

The threaded body and locking nuts provide an adjustable mounting arrangement. The cable exits from the rear of the sensor body.

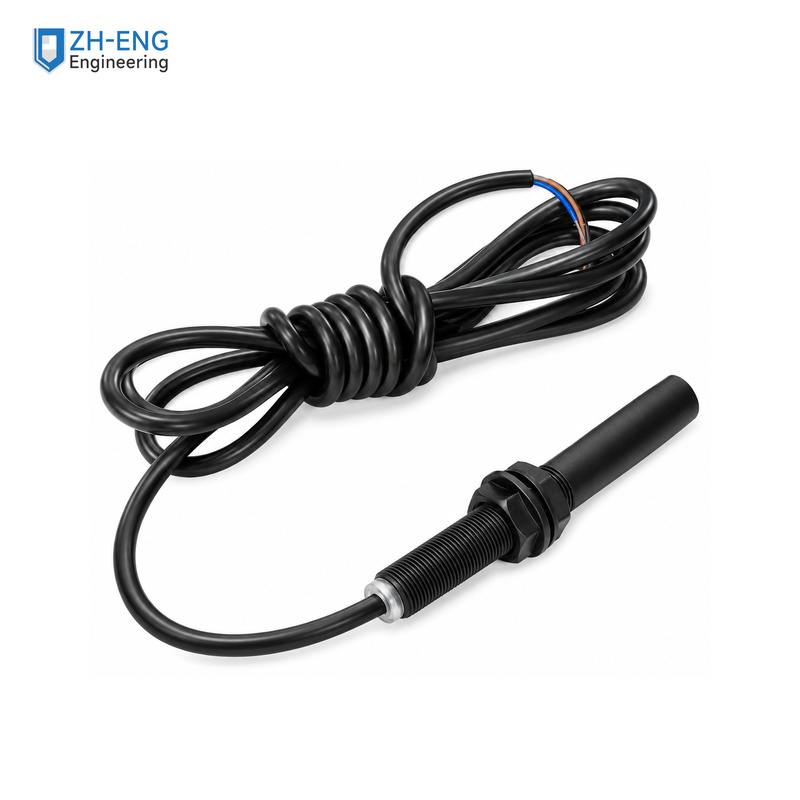

RMS12-PH-01 Elevator Magnetic Switch — RMS12-PH-01 product appearance.

Dimensions

Parameter	Dimension
Body diameter	Ø12 mm
Body length shown in the drawing	100 mm

RMS12-PH-01 dimensional drawing — Dimensions in millimetres.

Selection

Match the complete sensor version, operating supply, electrical output and cable arrangement to the required controller input when selecting a replacement.

Frequently Asked Questions

What configuration is shown for RMS12-PH-01?

The exact product image shows a cylindrical proximity or photoelectric sensor with attached black cable and clear lead section. This confirms visible construction only; hidden ratings and functions require source documentation.

Which mounting and sensing interfaces determine fit?

Check sensor diameter and length, mounting method, sensing face, cable exit and connector against the existing installation.

Which sensing and output details require confirmation?

Confirm sensing principle and range, supply, output type, polarity, cable assignment and controller interface from the exact sensor label and wiring diagram.
