Traction Machine Series
SH-FXW1
SH-FXW1 traction machine series with 3 verified configurations.

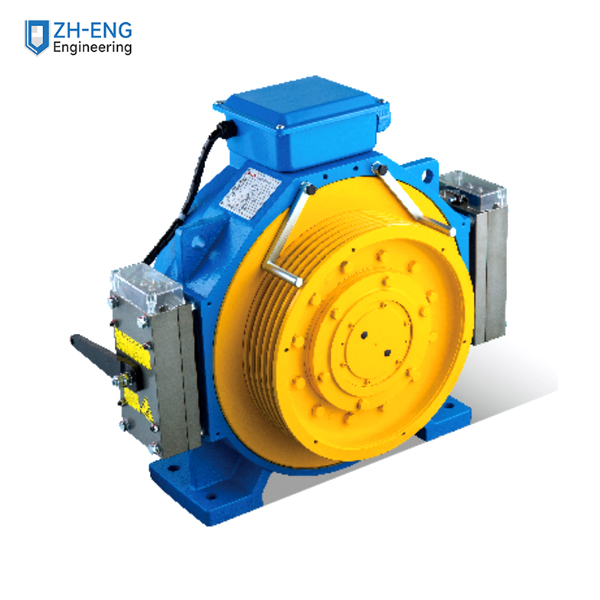

Product View
One clean product view is shown for this series. Configurations sharing the same appearance are listed in the specification table below.
Specifications
The main configuration and linked child configurations are consolidated in one table.
| Configuration | Rated load | Rated speed | Roping | Rated power | Source status |
|---|---|---|---|---|---|
| SH-FXW1 — 450 kg / 1.0 m/s | 450 kg | 1.0 m/s | 2:1 | 3.0 kW | Verified configuration |
| SH-FXW1 — 630 kg / 1.0 m/s | 630 kg | 1.0 m/s | 2:1 | 4.3 kW | Verified configuration |
| SH-FXW1 — 630 kg / 1.6 m/s | 630 kg | 1.6 m/s | 2:1 | 6.8 kW | Verified configuration |
Technical Drawing and Dimensions
The dimensional drawing has been separated from the original reference sheet and rebuilt as a standalone technical image.
| Configuration | Rated load | Rated speed | Dimensional applicability |
|---|---|---|---|
| SH-FXW1 — 450 kg / 1.0 m/s | 450 kg | 1.0 m/s | Series dimensional drawing shown above |
| SH-FXW1 — 630 kg / 1.0 m/s | 630 kg | 1.0 m/s | Series dimensional drawing shown above |
| SH-FXW1 — 630 kg / 1.6 m/s | 630 kg | 1.6 m/s | Series dimensional drawing shown above |
All listed configurations are included. Where the source provides one shared series drawing, that drawing applies to each configuration listed above. No unverified numeric dimensions have been added.
Technical Range
Rated load range450–630 kg
Rated speed range1–1.6 m/s
Roping2:1
Rated power range3–6.8 kW
Final selection and installation dimensions must follow the confirmed configuration drawing.
Verified FXW1 references
| Configuration | Rated load | Rated speed | Roping | Rated power |
|---|---|---|---|---|
| FXW1-30 | 450 kg | 1.0 m/s | 2:1 | 3.0 kW |
| FXW1-43 | 630 kg | 1.0 m/s | 2:1 | 4.3 kW |
| FXW1-68 | 630 kg | 1.6 m/s | 2:1 | 6.8 kW |
Outer-rotor PMS gearless series; 24 poles, AC 220/380 V, DC 110 V brake, IP41 and Class F insulation. Confirm the exact nameplate before ordering.
