ME320LN-4015 15 kW Elevator Inverter
A 15 kW elevator inverter for compatible synchronous and asynchronous traction-motor systems, with a three-phase 380–440 V AC input class.
Product Model and Features
Commercial modelME320LN-4015
Product identityME320LN-4015 15 kW Elevator Inverter

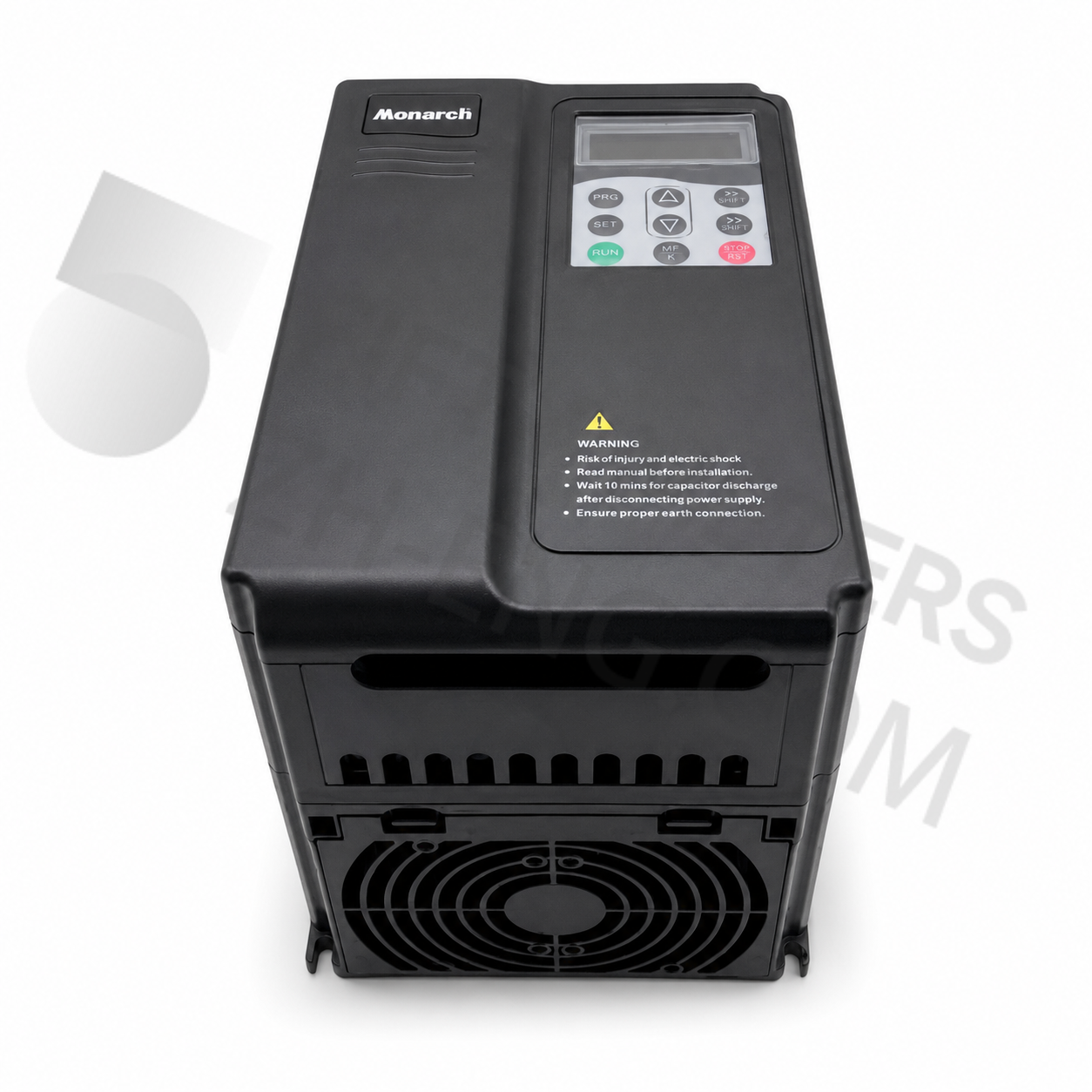

Product View
Product Information and Specifications
| Item | Information |
|---|---|
| Product type | Elevator inverter |
| Exact model | ME320LN-4015 |
| Applicable motor power | 15 kW |
| Input supply | Three-phase 380–440 V AC, 50/60 Hz |
| Rated input current | 36 A |
| Rated output current | 33 A |
| Output-frequency range | 0.000–90.00 Hz |
| Protection rating | IP20 |
| Overall dimensions | Approximately 348 × 223 × 177 mm |
| Reference weight | Approximately 10 kg |
Before You Buy
- Match the complete ME320LN-4015 model, 15 kW rating and voltage class.
- Confirm motor type, encoder feedback, braking arrangement and controller connections for the installation.
- Back up the installed parameters and check the mounting envelope before replacement.
Frequently Asked Questions
Which motor power and voltage class are listed for ME320LN-4015?
The verified configuration is 15 kW with a three-phase 380–440 V AC input supply.
Which rated currents are specified?
The listed rated input current is 36 A and the rated output current is 33 A.
Can ME320LN-4015 control both synchronous and asynchronous traction motors?
The verified ME320LN information identifies support for compatible permanent-magnet synchronous and asynchronous traction motors; the matching encoder and motor parameters must be selected for the installed system.
