Reviewed Product Views

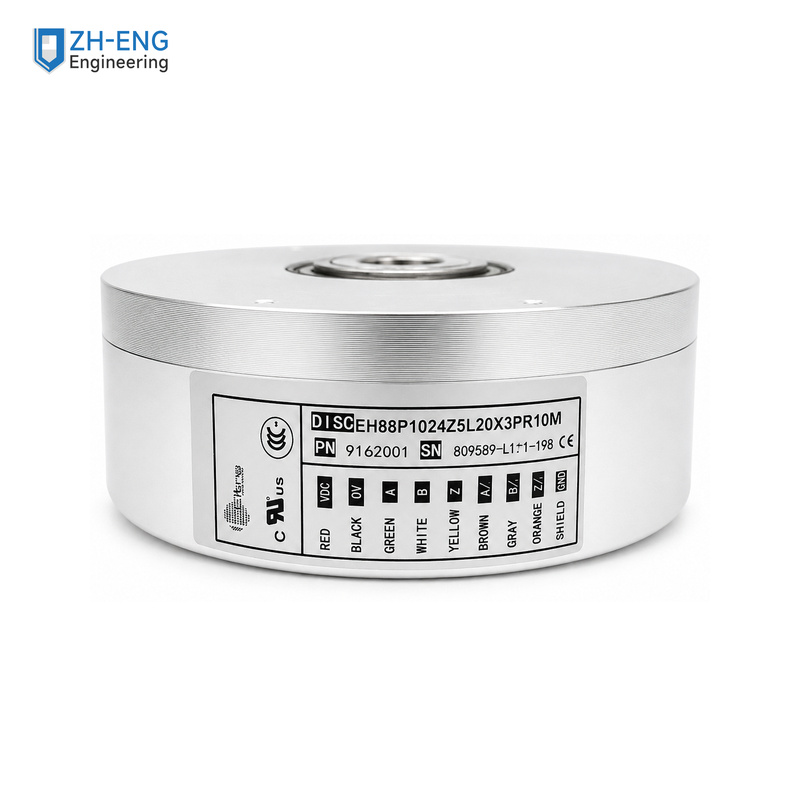

Two distinct views show the hollow-shaft mounting face and the label side. The visible long suffix is retained but is not treated as the confirmed stocked configuration because the backend model stops at EH88P1024Z5.
HOLLOW-SHAFT FACE AND TORQUE STOP
LABEL-SIDE STRUCTURE REFERENCE
Confirmed Prefix and Family Reference
| Item | Reviewed reference | Order check |
|---|
| Model prefix | EH88P1024Z5 | Confirm the complete physical suffix |
| Encoder type | Optical incremental, through hollow shaft | Confirm the installed motor and feedback input |
| Resolution / index | 1024 P/R; Z = with zero pulse | Match controller pulse and index requirements |
| Supply code | 5 = 4.5–5.5 V DC | Verify before energizing |
| Family mechanics | 88 mm body; IP65; 3000 rpm maximum | Check actual bore, mounting and duty |
| Output interface | Depends on the missing suffix | Confirm NPN, push-pull, line driver or RS-422 |
| Bore / cable | Family offers 25 or 30 mm bores and radial cable options | Confirm actual bore, length and termination |
Only fields encoded in the backend prefix are presented as product-specific. The remaining mechanical and electrical values are clearly marked as EH/EL 88 P family references.
EH 88 P Family Dimension Reference
FAMILY DRAWING — VERIFY ACTUAL BORE, TORQUE STOP AND COMPLETE SUFFIX
Buyer Confirmation Checklist
Complete model
Provide a sharp photo showing every character after EH88P1024Z5 and the part or serial number.
Electrical interface
Confirm supply, output type, A/B/Z channels, conductor assignment, cable length and controller input.
Mechanical fit
Check bore, mating shaft tolerance, torque stop, housing clearance, cable direction and mounting dimensions.
Frequently Asked Questions
What does the prefix confirm?
EH88P series, 1024 P/R, zero pulse and the 5 V supply code.
Can the photo suffix be assumed?
No. It is a structure reference until the stocked unit's full label is confirmed.
Which dimensions must match?
Confirm the actual bore, torque stop, mating shaft, housing clearance and cable outlet.
Which electrical details remain open?
Output interface, cable length, termination, conductor assignment and controller input.
Compatibility note: Encoder feedback is motion-critical. Qualified elevator personnel must confirm the complete suffix, wiring, shaft fit and controller interface before installation.
