SH-ERN 1387 no wire
SH-ERN 1387 no wire elevator component for model-specific replacement and project selection.

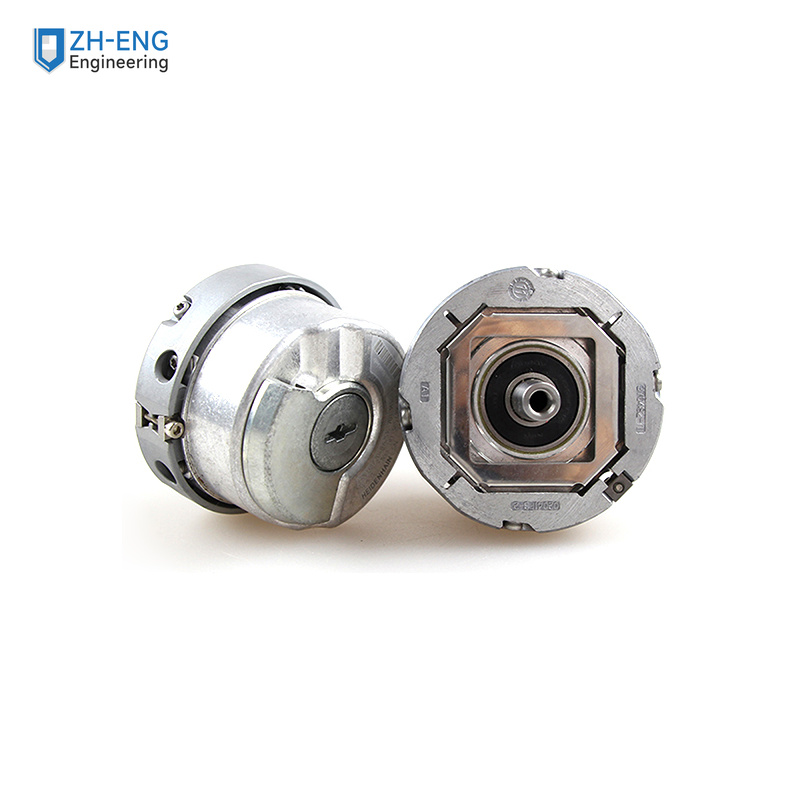

Product views
Specifications and functions
| Product | HEIDENHAIN ERN 1387 incremental elevator encoder |
|---|---|
| Model configuration | ERN 1387 no wire |
| Reference ID | 749147-02; confirm the complete physical ID before selection |
| Signal | 2048 lines, approximately 1.05 Vpp |
| Supply | 5 V +/-5% |
| Mechanical interface | 1:10 tapered shaft, 9.25 mm functional diameter |
| Selection | Confirm the exact ID, coupling condition and connector arrangement before ordering |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
